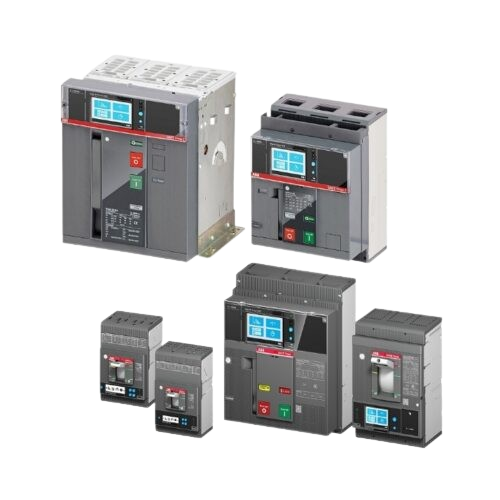

ABB AIR CIRCUIT BREAKER (ACB)

ABB Air Circuit Breaker (ACB) is a reliable and high-capacity protection device designed for low-voltage power distribution in industrial, commercial, and critical infrastructure environments. Available in current ratings from 630 amps to 6300 amps, with 3-pole or 4-pole configurations and breaking capacities of 50kA, 65kA, or 100kA, this ACB series offers flexibility, safety, and advanced control options.

Current Rating Range

• From 630A to 6300A – Supports a wide range of applications from small to large electrical loads.
• Suitable for main distribution boards, generator protection, and critical installations like data centers or hospitals.

Pole Configuration

• 3-Pole or 4-Pole Options – For use in 3-phase systems, with or without neutral connection.
• 4-pole ACBs ensure full disconnection in 4-wire systems, enhancing safety and system reliability.

Breaking Capacities (kA)

• Available in:
  • 50kA
  • 65kA
  • 100kA
• Supports high short-circuit interruption, ensuring robust protection against faults in heavy-duty electrical networks.

Mounting Types

• Fixed Type:
  • Permanently installed; used in stable installations where withdrawal is not needed.
  • Cost-effective and space-saving option for standard switchgear.
• Draw-out Type:
  • Allows easy removal and replacement without disconnecting cables.
  • Ideal for maintenance, testing, and quick replacements in critical environments.

Design & Construction Features

• Modular Design: Easy integration into a wide variety of panels and switchboards.
• Compact Size: Space-optimized design without compromising performance or safety.
• High Durability Contacts: Silver alloy contacts for high conductivity and extended life.
• Arc Chutes: Efficient arc extinction system ensures fast, safe breaking of high fault currents.
• Thermal and Magnetic Protection: Prevents damage due to overloads and short circuits.

Operational Features

• Manual or Motorized Operation: Flexibility for automatic or manual system requirements.
• Integrated Protection Units: Can include trip units like:
  • Overload protection (long time delay)
  • Short circuit protection (instantaneous)
  • Earth fault protection (optional)
• Advanced Trip Units: Models with electronic trip units enable accurate settings, remote communication, and diagnostics.
• User-Friendly Interface: Clear labeling, operation indicators, and test points for ease of use.

Safety & Compliance

• High Breaking Capacity: Capable of handling severe fault conditions with fast response.
• Mechanical Interlocks: Prevents accidental removal or insertion under load (in draw-out versions).
• Isolation Safety: Ensures complete disconnection during maintenance or faults.
• Compliance: Meets global safety and performance standards including IEC 60947-2.
• Internal Accessories: Options for undervoltage release, shunt trip, auxiliary contacts, and more.

Applications

Industrial Facilities

• Reliable protection for motors, transformers, switchgear, and large distribution panels.
• Withstands demanding electrical environments like steel plants, refineries, and manufacturing units.

Commercial Buildings

• Used in malls, hospitals, airports, and large office buildings for main circuit protection and load distribution.

Critical Infrastructure

• Ideal for data centers, banks, telecommunications, and power utilities where downtime is not an option.

Renewable Energy & Power Plants

• Supports generator protection, busbar control, and fault isolation in renewable and conventional power systems.

Advantages & Benefits

• Flexible Range: One product line supports many current ratings and installation types.
• High Fault Protection: Up to 100kA breaking capacity ensures superior fault interruption.
• Enhanced Maintenance: Draw-out type simplifies periodic inspection, testing, or replacement.
• Long Operational Life: Designed for extended electrical and mechanical endurance.
• Intelligent Monitoring: Advanced models support communication with energy management systems via Modbus, Profibus, or Ethernet.
• Customizable Settings: Enables precise coordination with downstream protection devices.
• Reduced Downtime: Quick reset and replacement features minimize service interruptions.

Accessories & Expansion Options

• Remote Control Kits: For remote opening/closing and status monitoring.
• Communication Modules: Integrate into SCADA or BMS systems for data logging and system control.
• Locking Devices: For mechanical safety and access control.
• Zone Selective Interlocking (ZSI): Reduces fault-clearing time by coordinating with downstream breakers.
